Stock Code: 300062

Storcube Household Micro-Storage Series

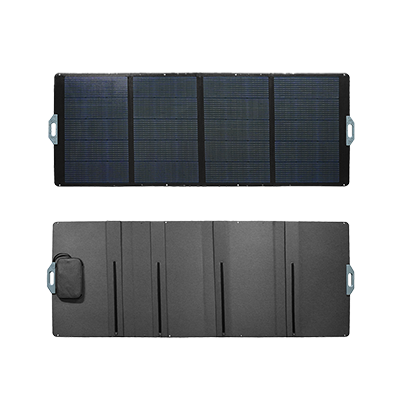

The Storcube household micro-storage system offers a compact, portable energy solution tailored for residential spaces like balconies and terraces. This system seamlessly integrates high-efficiency solar panels, a micro-inverter, and advanced smart lithium battery packs, capturing and storing renewable solar energy, ensuring a clean, sustainable power supply for daily household needs. Ideal for eco-friendly homeowners, Storcube provides an easy, space-saving way to generate and store solar energy, reducing reliance on grid power and promoting green energy use at home.

  • Model :

    STC 01/1 E1
  • Capacity :

    1024Wh Each Battery Pack, Support Up to 5120Wh Energy Storage
  • Applications :

    Apartment / Villa / Courtyard
  • Product Origin :

    China
  • Sales Type :

    Retail / Wholesale / Distributor Sales
  • Customization :

    NA







  • System Overview









  • System Features
  • #
    Wide Compatibility & Easy Installation
    Plug-and-play setup for quick installation and compatibility with most micro-inverter systems without requiring communication pairing.
  • #
    Expandable Capacity
    Modular design supports battery expansion from 1024 Wh to 5120 Wh with up to five stackable packs to meet varying energy needs.
  • #
    Durability & Longevity
    IP65-rated for outdoor use, featuring LPF batteries designed for long-term performance with over 6,000 charge-discharge cycles.
  • #
    Safety & Smart Monitoring
    Advanced 10-layer BMS ensures high safety standards, while the smart app enables real-time monitoring and control.
  • #
    Efficient Energy Use & Versatile Design
    Dual MPPTs improve energy performance, and the dual-use design allows easy conversion to a portable power station with a split inverter.













  • Economic Benefits

Assuming effective sunlight duration of 3-4 hours per day and an MPPT output of 1200W, the solar storage system can generate approximately 3.6-4.8 kWh of electricity daily. This leads to annual savings of €480, based on an electricity cost of €0.4 per kWh.

Annual electricity savings can be calculated as: (4 kWh/day * 300 days)/3500 kWh/year = 34.2%.













  • Specifications



Mainframe
Product Model STC 01/1 E1 Maximum Input Current 15A*2
Capacity 1024 Wh Maximum Output Power 800W(According to EU Regulations)
Dimensions(L*W*H) Single Pack: 12.99*8.27*7.68(in) / 330*210*195(mm) Output Voltage Range 20-45V
Weight 24.25lbs/11Kg Maximum Number of Parallel Battery Packs 5
Battery Type LiFePO4 Maximum Expandable Capacity 5120Wh
Cycle Life 6000 Cycles, Remaining Capacity ≥ 70% Ingress Protection Rating IP65
Maximum Input Power 1200W(600W*2) Charging/Discharging Ambient Temperature -20°C-45°C
Input Voltage Range 18-55V Electric Heating Start Temperature ≤5°C
Note: When the battery cell temperature is ≤5°C, the electric heating will activate. Charging is possible once the battery cell temperature exceeds 5°C.

Protection
PV High-voltage Rapid Shutdown Support High/Low Temperature Protection Support
Overcharge/Overdischarge/Overcurrent Protection Support Short Circuit Protection Support

Others
Wireless Communication Bluetooth, Wi-Fi Balancing Mode Support
Heating Function Support Communication CAN













  • Application Scenarios
