The ELE Series SF6 Gas-Insulated Ring Main Unit (RMU) is a compact, reliable power distribution solution designed for both urban and industrial environments. Featuring advanced SF6 gas insulation, this unit ensures high reliability, maintenance-free operation, and seamless integration in space-constrained areas. Its sealed structure enhances safety and protects against external elements, making it ideal for mission-critical applications in smart grids, power stations, and substations.
Model :
ELE-12/24Capacity :
12/24kV 630AApplications :
Industrial Facilities / Data Centers / Commercial Complexes / Urban AreasProduct Origin :
ChinaSales Type :
Retail / Wholesale / Distributor SalesCustomization :
Support
Sealed Stainless Steel Tank
Helium Leak Detection (Gas Tank)
High Durability
| Model | 12kV SF6 Insulated RMU | 24kV SF6 Insulated RMU | ||||

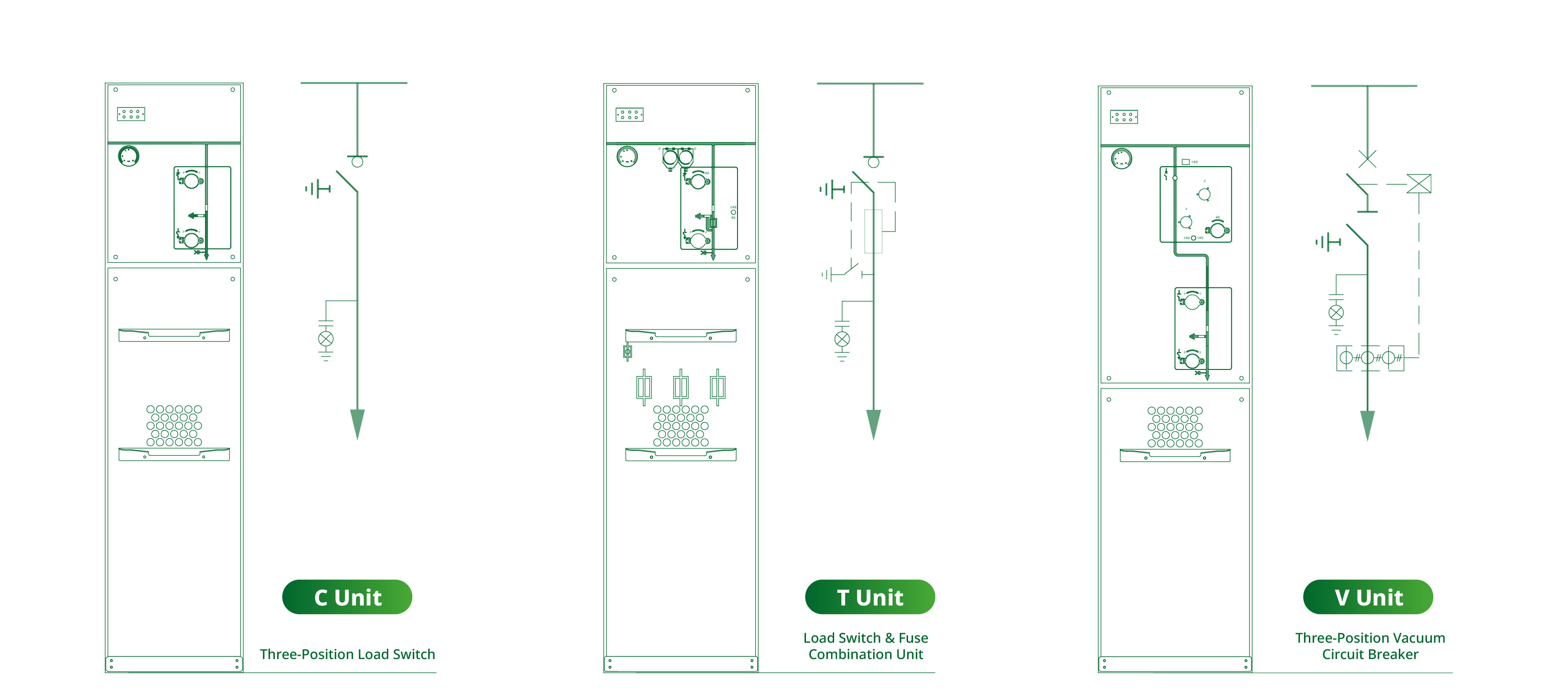

| Load Breaker Cabinet | Fuse Combination Switchgear | Circuit Breaker Panel | Load Breaker Cabinet | Fuse Combination Switchgear | Circuit Breaker Panel | |
| Rated Voltage | 12kV | 12kV |
12kV |
24kV | 24kV |
24kV |
| Rated Frequency | 50Hz | 50Hz |
50Hz |
50Hz | 50Hz |
50Hz |
| Rated Current | 630A | 125A(Limited by High Voltage Fuses) | 630/1250A | 630A | 125A(Limited by High Voltage Fuses) | 630A |
| Rated Power Frequency Withstand Voltage(1min) | 42/48kV | 42/48kV |
42/48kV |
65/79kV | 65/79kV |
65/79kV |
| Rated Lightning Impulse Withstand Voltage (Peak Value) | 75/85kV | 75/85kV |
75/85kV |
125/145kV | 125/145kV |
125/145kV |
| Electrical Life | E3 Times | E3 Times | E2 Times | E3 Times | E3 Times | E2 Times |
| Mechanical Life | 5000 Times | 5000 Times | 10000 Times | 5000 Times | 5000 Times | 10000 Times |
| Rated Short-Circuit Breaking Current | —— | 31.5kA(Limited by High Voltage Fuses) | 20/25/31.5kA | —— | 31.5kA(Limited by High Voltage Fuses) | 20kA |
| Rated Closing Current (Peak) | 50/63kA | 80kA(Limited by High Voltage Fuses) | 50/63/80kA | 50kA | 80kA(Limited by High Voltage Fuses) | 50kA |
| Rated Transfer Current | —— | 1750A | —— | —— | 1400A | —— |
| Rated Peak Withstand Current of Main Circuit and Ground Circuit | 50/63kA | —— | 50/63/80kA | 50kA | —— | 50kA |
| Rated Short-Time Withstand Current of Ground Circuit (2s) | 20/25kA | —— | 20/25/31.5kA | 20kA | —— | 20kA |
| Rated Short-Time Withstand Current of Main Circuit (4s) | 20/25kA | —— | 20/25/31.5kA | 20kA | —— | 20kA |
| Dimensions(W*D*H)(excluding door) |
375*750*1950/2050mm |
420*750*1950/2050mm |
420/500/600*750*1950/2050mm |
375*750*1950/2050mm |
420*750*1950/2050mm |
420*750*1950/2050mm |
| Internal Arc Classification (IAC class) | AFLR,20kA,1s | AFLR,20kA,1s | ||||
| Rated Working Pressure (20°C Gauge) | 0.03MPa | 0.03MPa | ||||
| Minimum Working Pressure (20°C Gauge) | 0.02MPa | 0.02MPa | ||||
| Enclosure Ingress Protection Rating | IP41 | IP4X | ||||
| Gas Chamber Ingress Protection Rating | IP67 | IP67 | ||||
| Annual Gas Leakage Rate | ≤0.01% | ≤0.01% | ||||
